Sealed Against
Water · Dust · Corrosion
IP65 SJSF tri-proof fixtures — linear battens, round vapor-tights, and rugged compacts from 15W to 150W — built to keep working where ordinary luminaires fail.
Three Proofs in One Fixture
IP65 is not a sticker — it is a sealed build. Here is exactly what the SJSF series shrugs off.
Waterproof
A waterproof silicone gasket seals the housing against water jets from any direction. Anti-glare PC or tempered-glass covers keep moisture out of the optical and driver chambers — safe for wash-down areas, car parks, and damp basements.
Dust-Tight
The fully sealed, integrated body blocks all dust ingress — the "6" in IP65 means dust-tight. Fixtures keep their output in workshops, warehouses, woodworking, grain handling, and cement environments where airborne particles clog ordinary luminaires.
Corrosion-Resistant
High-pressure die-cast aluminum and high-strength ABS/PC bodies resist corrosion and impact. Stainless-steel or flame-retardant PC clips withstand chemical, agricultural, and coastal atmospheres that rust standard fittings.
What Makes the Seal
The IP65 rating comes from the stack itself: a clear PC cover, a continuous silicone gasket, the LED board, the driver, and a one-piece die-cast aluminum body — clamped together and bracketed.

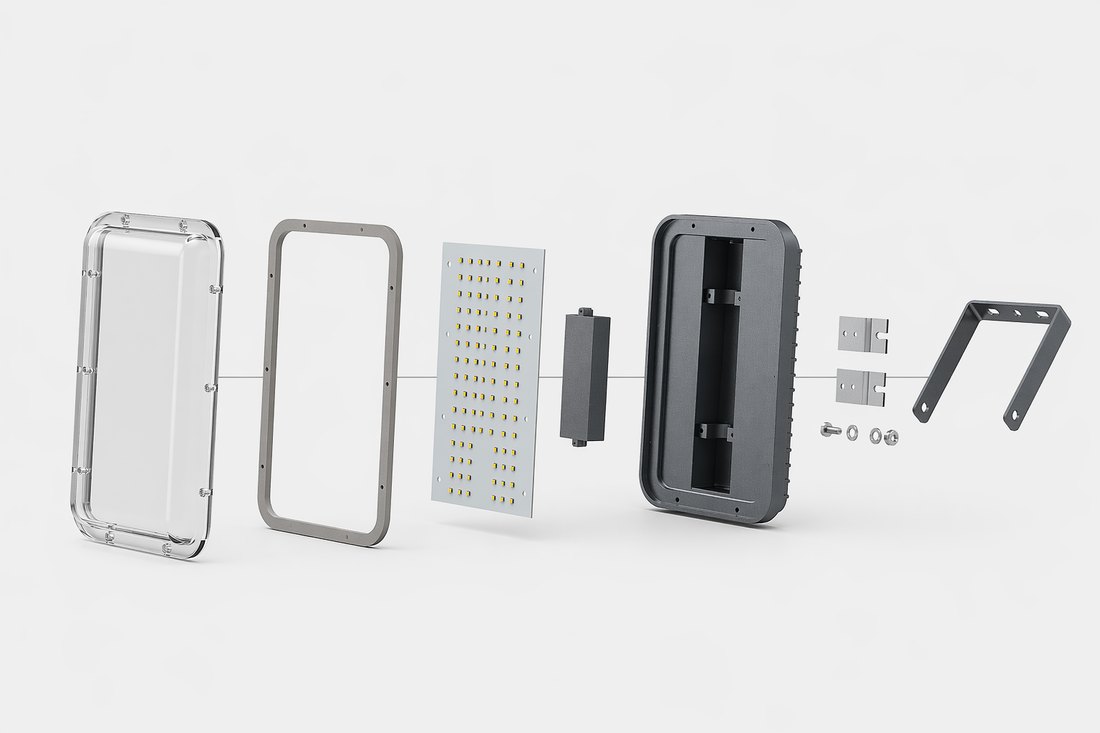

Illustrative CAD exploded view of the SJSF tri-proof assembly.
Built for Punishing Environments
If a standard fitting would corrode, fog up, or fill with dust — this is where tri-proof belongs.
Wet & Wash-Down
Car parks, car washes, basements, cold storage, and food-processing wash-down areas where water jets and condensation defeat ordinary fittings.
Dusty & Particulate
Workshops, warehouses, woodworking, grain handling, and cement plants where airborne dust clogs and dims unsealed luminaires.
Corrosive Atmospheres
Agricultural (ammonia), coastal/marine, and chemical-adjacent areas that rust standard fixtures — die-cast and ABS/PC bodies hold up.
Tunnels & Transit
Road and pedestrian tunnels, underpasses, and corridors needing continuous, low-maintenance linear runs with emergency options.
Pick the Shape That Fits the Job
Linear Batten
Continuous-run vapor-tight battens for car parks, corridors, tunnels, and racking aisles — T8-tube options.
Round Vapor-Tight
Compact round bodies with glass/PC covers and 360° ring-type optics for walkways, platforms, and damp ceilings.
Compact / Bracket
Rugged die-cast bodies with adjustable or multi-mount brackets for yards, perimeters, and demanding industrial bays.
6 Tri-Proof Series, Specified.
Real catalog dimensions for every series. Request a spec sheet, IES file, or DIALux study for any model.

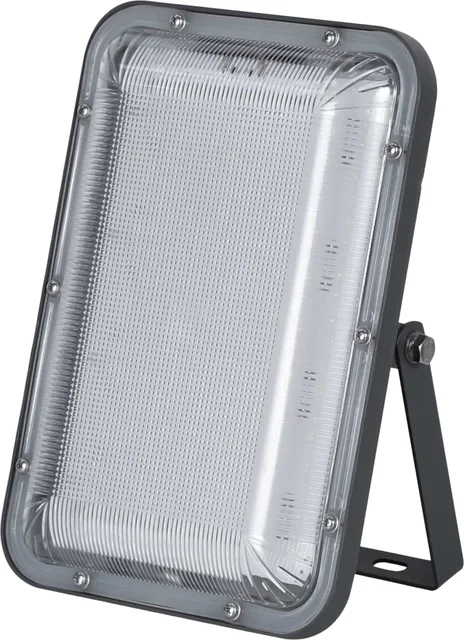

SJSF501
Die-cast aluminum body, anti-glare PC, adjustable bracket
- High-pressure die-cast aluminum housing
- Anti-glare high-temperature PC cover
- Waterproof silicone seal + built-in driver
- Adjustable mounting bracket
| Power | L | H | W |
|---|---|---|---|
| 50W | 258 | 360 | 85 |
| 60W | 258 | 360 | 85 |
SJSF502
Integrated round body, tempered-glass anti-glare cover
- Integrated one-piece structure
- Toughened anti-glare glass cover
- Compact round vapor-tight body
- Easy ceiling / surface mounting
| Power | Diameter | H |
|---|---|---|
| 20W | φ200 | 138 |
| 50W | φ200 | 148 |
| 80W | φ200 | 325 |

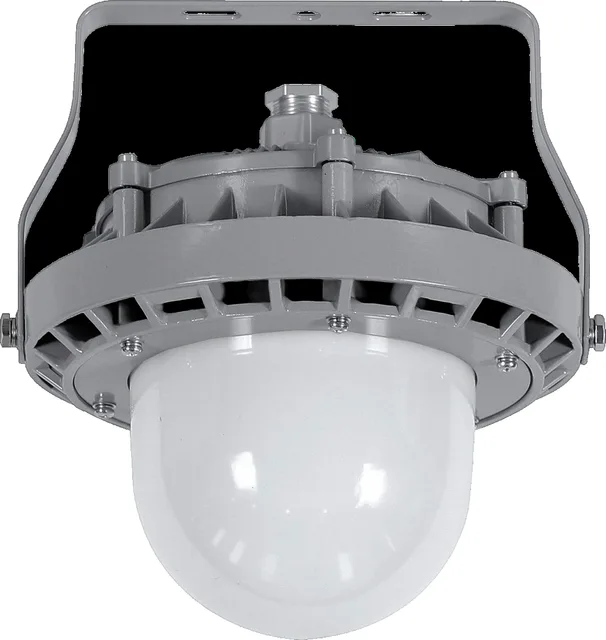

SJSF504
360° ring-type distribution, die-cast aluminum body
- Ring-type 360° light distribution
- High-pressure die-cast aluminum body
- Impact and corrosion resistant
- No dead-angle illumination
| Power | Diameter | H |
|---|---|---|
| 50W | φ230 | 320 |
| 80W | φ230 | 320 |

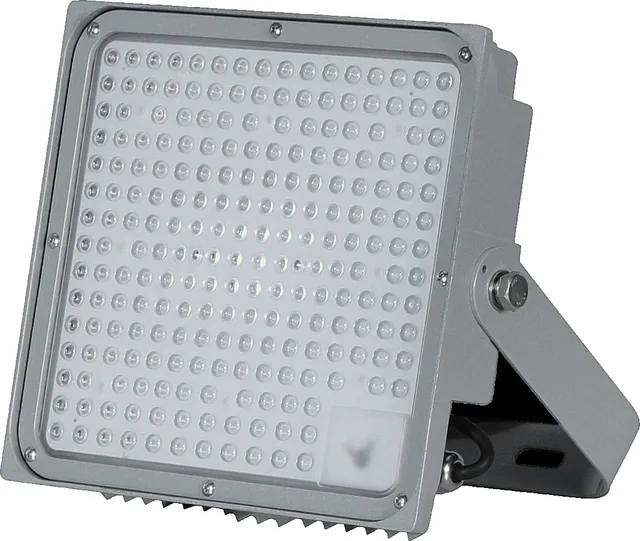

SJSF505
Multi-mount (pole / wall / ceiling), wide glare-free beam
- Curved-pole / wall / ceiling mounting
- Wide beam angle, glare-free
- Flexible perimeter and area lighting
- Excellent light distribution
| Power | L | H | W |
|---|---|---|---|
| 50W | 186 | 186 | 90 |
| 150W | 260 | 243 | 65 |
SJSF508
Integrated linear batten, flame-retardant PC / stainless clips
- Integrated linear batten form
- Flame-retardant PC / stainless-steel clips
- High-strength ABS or PC body
- For tunnels, warehouses, workshops
| Power | L | H | W |
|---|---|---|---|
| 18W | 1265 | 85 | 90 |
| 2×18W | 1265 | 125 | 90 |

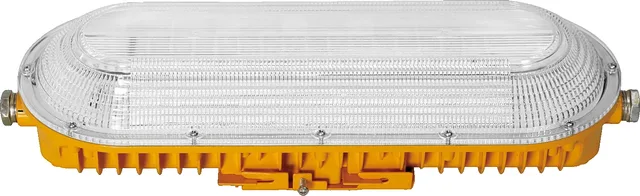

SJSF509
Integrated die-cast aluminum, compact and rugged
- Integrated compact structure
- High-pressure die-cast aluminum body
- Impact and corrosion resistant
- Rugged industrial build
| Power | L | H | W |
|---|---|---|---|
| 15W | 410 | 135 | 155 |
| 24W | 410 | 135 | 155 |
Dimensions in mm (L = length, H = height, W = width). SJSF508 uses T8 LED tubes.
Match the Series to the Need
Common to the SJSF Range
| Lamp Body Material | Die-Cast Aluminum / ABS+PC (by series) |
| Transparent Cover | Anti-glare PC / Tempered Glass |
| Light Source | Lumileds 3030 SMD LED (T8 tube / 2385 on select models) |
| Operating Voltage | AC100–277V |
| Color Temperature | 2700K – 6500K |
| Color Rendering Index (CRI) | ≥80 |
| Operating Temperature | -20°C ~ 45°C |
| Ingress Protection (IP) | IP65 |
| LED Lifespan | >50,000 hours |
| Luminous Efficacy | 120 – 160 lm/W |
Tri-Proof Lights — Questions Answered
What is a tri-proof LED light?
A tri-proof (or "vapor-tight") light is a sealed luminaire engineered against the three things that destroy ordinary fixtures: water, dust, and corrosion. Sunjoylight SJSF tri-proof fixtures are rated IP65 — fully dust-tight and protected against water jets — with die-cast aluminum or high-strength ABS/PC bodies that resist corrosion and impact. They are the standard choice for car parks, tunnels, workshops, cold storage, food processing, and agricultural buildings.
What does the IP65 rating actually mean?
IP65 has two digits. The first, "6", is the highest dust rating — completely dust-tight, with no ingress of particles. The second, "5", means the fixture withstands low-pressure water jets from any direction. Together they make IP65 suitable for damp, dusty, and wash-down environments. For submersion or high-pressure cleaning, tell us the conditions so we can advise on the right sealing.
Where are tri-proof lights typically used?
Anywhere an ordinary fixture would fail: underground and multi-storey car parks, road and pedestrian tunnels, warehouses and logistics centres, manufacturing workshops, food and beverage processing, cold storage, car washes, agricultural barns, and coastal or chemical-adjacent areas. The linear batten versions are popular for continuous rows over aisles and corridors.
What is the difference between the linear, round, and compact forms?
Linear battens (SJSF508) are long vapor-tight fixtures for continuous rows over aisles, corridors, and tunnels. Round vapor-tights (SJSF502, SJSF504) are compact bodies — including a 360° ring-type option — for walkways, platforms, and damp ceilings. Compact and bracket fixtures (SJSF501, SJSF505, SJSF509) are rugged die-cast bodies with adjustable or multi-mount brackets for yards, perimeters, and industrial bays.
Can I get emergency battery or dimming?
Yes. Optional emergency battery backup and dimming are available on request. Emergency operation keeps a defined light level during a power failure — important for car parks, tunnels, and escape routes — while dimming supports daylight or occupancy control. Tell us your requirement and we will configure the right driver.
What mounting options are available?
Depending on the series: surface and suspended mounting for linear battens; ceiling and surface mounting for round vapor-tights; and curved-pole, wall, and ceiling mounting for the multi-mount compact fixtures (e.g. SJSF505). Adjustable brackets allow aiming where directional light is needed. Share your mounting height and layout and we will recommend the fixture and accessories.
Do you offer OEM / ODM and custom configurations?
Yes. Sunjoylight is a direct manufacturer supporting OEM and ODM — custom lengths, wattages, color temperatures, covers (PC or tempered glass), clips, branding, and packaging. We also provide IES/LDT photometric files for DIALux lighting design. Minimum order quantities apply for custom builds.
